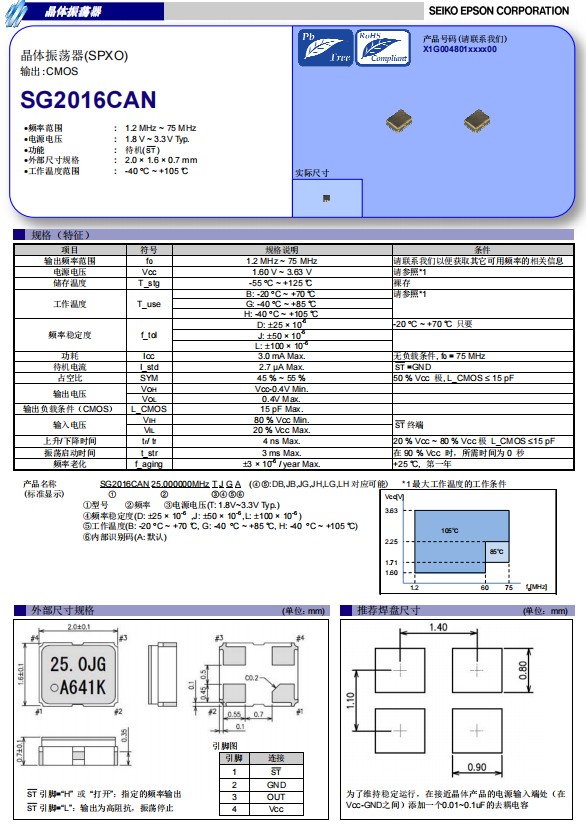

愛普生晶振SG2016CAN，是一款帶CMOS輸出的簡單封裝晶體振蕩器(SPXO)系列，小體積晶振尺寸2.0x1.6mm，四腳貼片晶振，有源晶振，石英晶體振蕩器，頻率范圍1.2MHz至75MHz，1.8V至3.3V的寬工作電壓和寬工作溫度范圍從-40°C到105°C。這些SPXO具有低電流消耗，高穩定性、超小型，輕薄型、低功耗，低抖動，寬溫等優勢。這些SPXO非常適合移動通訊，智能手機，物聯網、可穿戴設備、醫療、工業自動化等各種應用。
超小型2016mm晶振X1G004801003900非常適用于可穿戴設備,X1G004801000200,低功耗晶振

石英晶振	型號	頻率	尺寸	輸出波
X1G004801000200	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801000300	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801000700	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801001200	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801001300	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801001400	SG2016CAN	16.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801001800	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801002000	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801002100	SG2016CAN	27.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801002400	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801002600	SG2016CAN	33.333300MHz	2.00x1.60x0.70mm	CMOS
X1G004801002700	SG2016CAN	10.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801002800	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801002900	SG2016CAN	10.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801003000	SG2016CAN	4.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801003100	SG2016CAN	24.576000MHz	2.00x1.60x0.70mm	CMOS
X1G004801003500	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801003600	SG2016CAN	40.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801003900	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801004000	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801004400	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS
X1G004801004500	SG2016CAN	8.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801004600	SG2016CAN	8.000000MHz	2.00x1.60x0.70mm	CMOS

X1G004801004900	SG2016CAN	4.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005000	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005100	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005200	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005300	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005400	SG2016CAN	14.745600MHz	2.00x1.60x0.70mm	CMOS
X1G004801005500	SG2016CAN	14.745600MHz	2.00x1.60x0.70mm	CMOS
X1G004801005600	SG2016CAN	16.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005700	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005800	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801005900	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006000	SG2016CAN	24.576000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006100	SG2016CAN	27.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006200	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006300	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006400	SG2016CAN	33.330000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006500	SG2016CAN	33.330000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006600	SG2016CAN	33.333300MHz	2.00x1.60x0.70mm	CMOS
X1G004801006700	SG2016CAN	40.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006800	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801006900	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801007000	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801007100	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801007200	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801007300	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801007600	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS
X1G004801007700	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS

超小型2016mm晶振X1G004801003900非常適用于可穿戴設備,X1G004801000200,低功耗晶振

2016mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接（產品無鉛對應）,為無鉛產品.
