首頁歐美晶振Skyworks差分晶體,544BAAC001713ACG,6G無線網絡晶振



Skyworks差分晶體,544BAAC001713ACG,6G無線網絡晶振

產品型號：9454262

晶振頻率：325MHz

晶振尺寸：7.0*5.0*1.5mm

產品應用： Skyworks差分晶振,544BAAC001713ACG晶振,有源晶振,Si544 Ultra Series?振蕩器,超低抖動晶振,低相位噪聲時鐘,高可靠性晶振,高頻率穩定性晶振,低老化晶振,7050mm晶振,SMD晶體,6G無線網絡晶振,網絡服務器晶振,電信交換機...

Skyworks差分晶體,544BAAC001713ACG,6G無線網絡晶振,Skyworks差分晶振,有源晶振,Si544 Ultra Series™振蕩器采用Skyworks Solutions的第四代DSPLL®先進技術,提供超低抖動,低相位噪聲時鐘在任何輸出頻率,該設備通過簡單的I2C命令進行用戶編程,以提供從0.2到1500 MHz的任何頻率<1 PPB的分辨率,并在其工作范圍內保持極低的整數和分數頻率抖動,Si544提供了卓越的可靠性和頻率穩定性以及保證的老化性能,片上電源濾波提供業界領先的電源噪聲抑制,簡化了在使用開關模式電源的噪聲系統中產生低抖動時鐘的任務,7050mm晶振,SMD晶體,6G無線網絡晶振,網絡服務器晶振,電信交換機晶振.

Skyworks差分晶體,544BAAC001713ACG,6G無線網絡晶振特點：
•I2C可編程到任何頻率從0.2到1500 MHz，分辨率< 1 ppb
•非常低的抖動:150 fs類型RMS (12 kHz - 20 MHz)
•配置多達4引腳可選擇的啟動頻率
•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)
•出色的PSNR和電源抗噪性:-80 dBc類型
•3.3 V, 2.5 V和1.8 V VDD供電操作從相同的零件號
•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS輸出選項
•2.5x3.2, 3.2x5, 5x7 mm包裝選項
•樣品交付周期為1-2周

Skyworks差分晶體,544BAAC001713ACG,6G無線網絡晶振規格表

項目符號 規格說明 條件

額定頻率 f_nom 325MHz 請聯系我們以便獲取其它可用頻率的相關信息

電源電壓 Vcc 3.3V

儲存溫度 T_stg -55℃~+125℃ 裸存

工作溫度 T_use -40℃~ +85℃

頻率穩定性 f_tol ±20 ppm +25℃,超出標準的規格說明請聯系我們

電源電流 IDD 111mA Max
LVDS

對稱性（占空比） SYM 45%~55% 在輸出交叉點

輸出電壓 VOC 1.275V Max

LVDS

VO 0.9Vpp Max

輸入電壓 VIH 0.7×VDD Min

VIL 0.3×VDD Max

上升下降時間 tr/tf 350ps Max
LVDS

起始時間 t str 10ms Max

相位抖動 tpj 0.5ps Max

Differential Formats

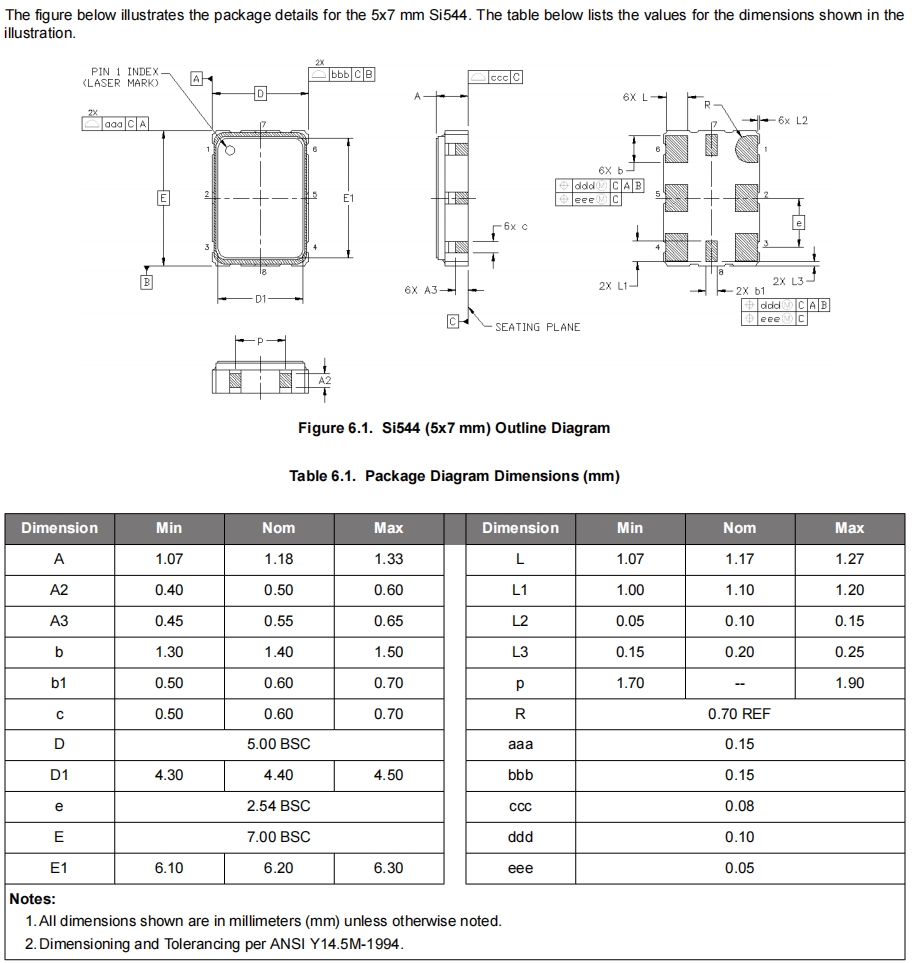

Skyworks差分晶體,544BAAC001713ACG,6G無線網絡晶振尺寸圖

原廠編碼品牌型號頻率輸出電壓

544BACC000112ACG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V ~ 3.3V

544AAAA000118ACG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVPECL 2.5V ~ 3.3V

544AADA000163ACG Skyworks Solutions Inc. Ultra™ Si544 20 MHz LVPECL 2.5V ~ 3.3V

544BADB001939ACG Skyworks Solutions Inc. Ultra™ Si544 150.060024 MHz LVDS 1.8V ~ 3.3V

544BACB001962ACG Skyworks Solutions Inc. Ultra™ Si544 121.3056 MHz LVDS 1.8V ~ 3.3V

544AAAA000798ACG Skyworks Solutions Inc. Ultra™ Si544 1 MHz LVPECL 2.5V ~ 3.3V

544BAAC001713ACG Skyworks Solutions Inc. Ultra™ Si544 325 MHz LVDS 1.8V ~ 3.3V

544BACB001952ACG Skyworks Solutions Inc. Ultra™ Si544 202.5 MHz LVDS 1.8V ~ 3.3V

544BACB001808ACG Skyworks Solutions Inc. Ultra™ Si544 270 MHz LVDS 1.8V ~ 3.3V

544BACB001939ACG Skyworks Solutions Inc. Ultra™ Si544 150.060024 MHz LVDS 1.8V ~ 3.3V

544BAAC000627ACG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V ~ 3.3V

544BACC001530ACG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V ~ 3.3V

544BACB001961ACG Skyworks Solutions Inc. Ultra™ Si544 121.306 MHz LVDS 1.8V ~ 3.3V

544AAAA000126ACG Skyworks Solutions Inc. Ultra™ Si544 200 MHz LVPECL 2.5V ~ 3.3V

544BACB001960ACG Skyworks Solutions Inc. Ultra™ Si544 227.272727 MHz LVDS 1.8V ~ 3.3V

544BAAC001741ACG Skyworks Solutions Inc. Ultra™ Si544 70.656 MHz LVDS 1.8V ~ 3.3V

544BADB000991ACG Skyworks Solutions Inc. Ultra™ Si544 135 MHz LVDS 1.8V ~ 3.3V

544ACAA001427BCGR Skyworks Solutions Inc. Ultra™ Si544 157 MHz LVPECL 2.5V ~ 3.3V

544AAAA000121BCG Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVPECL 2.5V ~ 3.3V

544BACC000118BCGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V ~ 3.3V

544BACB001960ACGR Skyworks Solutions Inc. Ultra™ Si544 227.272727 MHz LVDS 1.8V ~ 3.3V

544BAAB001011BCGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V ~ 3.3V

544BCAC002065BCGR Skyworks Solutions Inc. Ultra™ Si544 272.8 MHz LVDS 1.8V ~ 3.3V

544BBAC001541BCGR Skyworks Solutions Inc. Ultra™ Si544 96 MHz LVDS 1.8V ~ 3.3V

544BCAA000126BCGR Skyworks Solutions Inc. Ultra™ Si544 200 MHz LVDS 1.8V ~ 3.3V

544BCAA000136BCGR Skyworks Solutions Inc. Ultra™ Si544 160 MHz LVDS 1.8V ~ 3.3V

544BAAC000111BCG Skyworks Solutions Inc. Ultra™ Si544 25 MHz LVDS 1.8V ~ 3.3V

544AADA000163ACGR Skyworks Solutions Inc. Ultra™ Si544 20 MHz LVPECL 2.5V ~ 3.3V

544BAAA000137BCG Skyworks Solutions Inc. Ultra™ Si544 1.024 GHz LVDS 1.8V ~ 3.3V

544ACAC000112BCGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V ~ 3.3V

544BACA000420BCG Skyworks Solutions Inc. Ultra™ Si544 644.53125 MHz LVDS 1.8V ~ 3.3V

544AAAA000112BCGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V ~ 3.3V

544BAAA000137BCGR Skyworks Solutions Inc. Ultra™ Si544 1.024 GHz LVDS 1.8V ~ 3.3V

544AAAA000126ACGR Skyworks Solutions Inc. Ultra™ Si544 200 MHz LVPECL 2.5V ~ 3.3V

544ACAC000112BCG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V ~ 3.3V

544BAAC000157BCG Skyworks Solutions Inc. Ultra™ Si544 50 MHz LVDS 1.8V ~ 3.3V

544BAAB000482BCG Skyworks Solutions Inc. Ultra™ Si544 148.35 MHz LVDS 1.8V ~ 3.3V

544BBCC000121BCG Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V ~ 3.3V

544ABAC001975BCGR Skyworks Solutions Inc. Ultra™ Si544 40.8 MHz LVPECL 2.5V ~ 3.3V

544BAAC001713ACGR Skyworks Solutions Inc. Ultra™ Si544 325 MHz LVDS 1.8V ~ 3.3V

544BCBA000544BCGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V ~ 3.3V

544BAAC001808BCGR Skyworks Solutions Inc. Ultra™ Si544 270 MHz LVDS 1.8V ~ 3.3V

544BCAA001541BCG Skyworks Solutions Inc. Ultra™ Si544 96 MHz LVDS 1.8V ~ 3.3V

544BAAB000482BCGR Skyworks Solutions Inc. Ultra™ Si544 148.35 MHz LVDS 1.8V ~ 3.3V

544ACAA000131BCGR Skyworks Solutions Inc. Ultra™ Si544 120 MHz LVPECL 2.5V ~ 3.3V

544AAAA000112BCG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V ~ 3.3V

544BAAC001808BCG Skyworks Solutions Inc. Ultra™ Si544 270 MHz LVDS 1.8V ~ 3.3V

544BCAA000136BCG Skyworks Solutions Inc. Ultra™ Si544 160 MHz LVDS 1.8V ~ 3.3V

544AAAA000798ACGR Skyworks Solutions Inc. Ultra™ Si544 1 MHz LVPECL 2.5V ~ 3.3V

544BACC000112ACGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V ~ 3.3V

544AAAA000110BCG Skyworks Solutions Inc. Ultra™ Si544 74.25 MHz LVPECL 2.5V ~ 3.3V

544BAAC000157BCGR Skyworks Solutions Inc. Ultra™ Si544 50 MHz LVDS 1.8V ~ 3.3V

544BACB001952ACGR Skyworks Solutions Inc. Ultra™ Si544 202.5 MHz LVDS 1.8V ~ 3.3V

544BADB000991ACGR Skyworks Solutions Inc. Ultra™ Si544 135 MHz LVDS 1.8V ~ 3.3V

544AADC000112BCG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V ~ 3.3V

544ABAA000112BCG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V ~ 3.3V

544AAAA000118BCG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVPECL 2.5V ~ 3.3V

544AAAA000118ACGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVPECL 2.5V ~ 3.3V

544AAAA000118BCGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVPECL 2.5V ~ 3.3V

544ACAA002065BCGR Skyworks Solutions Inc. Ultra™ Si544 272.8 MHz LVPECL 2.5V ~ 3.3V

544BACB001961ACGR Skyworks Solutions Inc. Ultra™ Si544 121.306 MHz LVDS 1.8V ~ 3.3V

544BAAB001011BCG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V ~ 3.3V

544AADC000112BCGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V ~ 3.3V

544BAAC000111BCGR Skyworks Solutions Inc. Ultra™ Si544 25 MHz LVDS 1.8V ~ 3.3V

544ACAA002065BCG Skyworks Solutions Inc. Ultra™ Si544 272.8 MHz LVPECL 2.5V ~ 3.3V

544ACAA000112BCG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V ~ 3.3V

544BACB001939ACGR Skyworks Solutions Inc. Ultra™ Si544 150.060024 MHz LVDS 1.8V ~ 3.3V

544BACC001530ACGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V ~ 3.3V

544BCAA001541BCGR Skyworks Solutions Inc. Ultra™ Si544 96 MHz LVDS 1.8V ~ 3.3V

544BAAA001741BCGR Skyworks Solutions Inc. Ultra™ Si544 70.656 MHz LVDS 1.8V ~ 3.3V

544BAAC000215BCGR Skyworks Solutions Inc. Ultra™ Si544 27 MHz LVDS 1.8V ~ 3.3V

544BACA000420BCGR Skyworks Solutions Inc. Ultra™ Si544 644.53125 MHz LVDS 1.8V ~ 3.3V

544BAAC001741ACGR Skyworks Solutions Inc. Ultra™ Si544 70.656 MHz LVDS 1.8V ~ 3.3V

544BBCB000112BCGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V ~ 3.3V

544BAAC000627ACGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V ~ 3.3V

544BBCC000121BCGR Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V ~ 3.3V

544BAAC000544BCGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V ~ 3.3V

544BBAC001541BCG Skyworks Solutions Inc. Ultra™ Si544 96 MHz LVDS 1.8V ~ 3.3V

544BAAC000544BCG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V ~ 3.3V

544BAAC000215BCG Skyworks Solutions Inc. Ultra™ Si544 27 MHz LVDS 1.8V ~ 3.3V

544ACAA000131BCG Skyworks Solutions Inc. Ultra™ Si544 120 MHz LVPECL 2.5V ~ 3.3V

544BCAA000112BCG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V ~ 3.3V

544AAAA000110BCGR Skyworks Solutions Inc. Ultra™ Si544 74.25 MHz LVPECL 2.5V ~ 3.3V

544BBCB000112BCG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V ~ 3.3V

544ABAA000112BCGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V ~ 3.3V

544BCBA000544BCG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V ~ 3.3V

544ACAA000112BCGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V ~ 3.3V

544BAAA001741BCG Skyworks Solutions Inc. Ultra™ Si544 70.656 MHz LVDS 1.8V ~ 3.3V

544BACB001962ACGR Skyworks Solutions Inc. Ultra™ Si544 121.3056 MHz LVDS 1.8V ~ 3.3V

544ABAA001982BCG Skyworks Solutions Inc. Ultra™ Si544 133.3125 MHz LVPECL 2.5V ~ 3.3V

544BBCB000126BCG Skyworks Solutions Inc. Ultra™ Si544 200 MHz LVDS 1.8V ~ 3.3V

544BACB001808ACGR Skyworks Solutions Inc. Ultra™ Si544 270 MHz LVDS 1.8V ~ 3.3V

544BBCB000126BCGR Skyworks Solutions Inc. Ultra™ Si544 200 MHz LVDS 1.8V ~ 3.3V

544BCAC002065BCG Skyworks Solutions Inc. Ultra™ Si544 272.8 MHz LVDS 1.8V ~ 3.3V

544BCAB000313BCG Skyworks Solutions Inc. Ultra™ Si544 300 MHz LVDS 1.8V ~ 3.3V

544ABAC001975BCG Skyworks Solutions Inc. Ultra™ Si544 40.8 MHz LVPECL 2.5V ~ 3.3V

544BCAB000313BCGR Skyworks Solutions Inc. Ultra™ Si544 300 MHz LVDS 1.8V ~ 3.3V

544ABAA001982BCGR Skyworks Solutions Inc. Ultra™ Si544 133.3125 MHz LVPECL 2.5V ~ 3.3V

544BACC000118BCG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V ~ 3.3V

544BCAA000126BCG Skyworks Solutions Inc. Ultra™ Si544 200 MHz LVDS 1.8V ~ 3.3V

544AAAA000121BCGR Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVPECL 2.5V ~ 3.3V

544BADB001939ACGR Skyworks Solutions Inc. Ultra™ Si544 150.060024 MHz LVDS 1.8V ~ 3.3V

544BCAA000112BCGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V ~ 3.3V

544ACAA001427BCG Skyworks Solutions Inc. Ultra™ Si544 157 MHz LVPECL 2.5V ~ 3.3V

544BBCB000177BBG Skyworks Solutions Inc. Ultra™ Si544 297 MHz LVDS 1.8V, 2.5V, 3.3V

544AAAA000110BBGR Skyworks Solutions Inc. Ultra™ Si544 74.25 MHz LVPECL 2.5V, 3.3V

544AAAA000112BBGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V, 3.3V

544AAAA000121BBGR Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVPECL 2.5V, 3.3V

544AAAA000126ABGR Skyworks Solutions Inc. Ultra™ Si544 200 MHz LVPECL 2.5V, 3.3V

544AAAA000798ABGR Skyworks Solutions Inc. Ultra™ Si544 1 MHz LVPECL 2.5V, 3.3V

544AADA000163ABGR Skyworks Solutions Inc. Ultra™ Si544 20 MHz LVPECL 2.5V, 3.3V

544AADC000112BBGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V, 3.3V

544BAAB000121BBGR Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000111BBGR Skyworks Solutions Inc. Ultra™ Si544 25 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000157BBGR Skyworks Solutions Inc. Ultra™ Si544 50 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000544BBGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000627ABGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC001713ABGR Skyworks Solutions Inc. Ultra™ Si544 325 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC001741ABGR Skyworks Solutions Inc. Ultra™ Si544 70.656 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC001808BBGR Skyworks Solutions Inc. Ultra™ Si544 270 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC000112ABGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC000118BBGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC000199BBGR Skyworks Solutions Inc. Ultra™ Si544 40 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC000627ABGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC001530ABGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC001530BBGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC001926BBGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC001927BBGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC001928BBGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BADB000991ABGR Skyworks Solutions Inc. Ultra™ Si544 135 MHz LVDS 1.8V, 2.5V, 3.3V

544BADB001939ABGR Skyworks Solutions Inc. Ultra™ Si544 150.060024 MHz LVDS 1.8V, 2.5V, 3.3V

544BAEA001936BBGR Skyworks Solutions Inc. Ultra™ Si544 300 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000215BBGR Skyworks Solutions Inc. Ultra™ Si544 27 MHz LVDS 1.8V, 2.5V, 3.3V

544AAAA000110BBG Skyworks Solutions Inc. Ultra™ Si544 74.25 MHz LVPECL 2.5V, 3.3V

544AAAA000112BBG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V, 3.3V

544AAAA000121BBG Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVPECL 2.5V, 3.3V

544AAAA000126ABG Skyworks Solutions Inc. Ultra™ Si544 200 MHz LVPECL 2.5V, 3.3V

544AAAA000798ABG Skyworks Solutions Inc. Ultra™ Si544 1 MHz LVPECL 2.5V, 3.3V

544AADA000163ABG Skyworks Solutions Inc. Ultra™ Si544 20 MHz LVPECL 2.5V, 3.3V

544AADC000112BBG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V, 3.3V

544BAAB000121BBG Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000111BBG Skyworks Solutions Inc. Ultra™ Si544 25 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000157BBG Skyworks Solutions Inc. Ultra™ Si544 50 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000544BBG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000627ABG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC001713ABG Skyworks Solutions Inc. Ultra™ Si544 325 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC001741ABG Skyworks Solutions Inc. Ultra™ Si544 70.656 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC001808BBG Skyworks Solutions Inc. Ultra™ Si544 270 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC000112ABG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC000118BBG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC000199BBG Skyworks Solutions Inc. Ultra™ Si544 40 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC000627ABG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC001530ABG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC001530BBG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC001926BBG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC001927BBG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC001928BBG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BADB000991ABG Skyworks Solutions Inc. Ultra™ Si544 135 MHz LVDS 1.8V, 2.5V, 3.3V

544BADB001939ABG Skyworks Solutions Inc. Ultra™ Si544 150.060024 MHz LVDS 1.8V, 2.5V, 3.3V

544BAEA001936BBG Skyworks Solutions Inc. Ultra™ Si544 300 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000215BBG Skyworks Solutions Inc. Ultra™ Si544 27 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC001530BCGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V ~ 3.3V

544BACC001928BCGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V ~ 3.3V

544BACC001926BCGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V ~ 3.3V

544BACC000199BCGR Skyworks Solutions Inc. Ultra™ Si544 40 MHz LVDS 1.8V ~ 3.3V

544BACC001927BCGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V ~ 3.3V

544BACC000627ACGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V ~ 3.3V

544BBAC000115CCGR Skyworks Solutions Inc. Ultra™ Si544 125 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000115CCGR Skyworks Solutions Inc. Ultra™ Si544 125 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000159CCGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544AACC000110ACGR Skyworks Solutions Inc. Ultra™ Si544 74.25 MHz LVPECL 2.5V, 3.3V

544EAAC002354ACGR Skyworks Solutions Inc. Ultra™ Si544 103 MHz HCSL 1.8V, 2.5V, 3.3V

544BACC000188BCGR Skyworks Solutions Inc. Ultra™ Si544 12 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000115BCGR Skyworks Solutions Inc. Ultra™ Si544 125 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000112BCGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC002361BCGR Skyworks Solutions Inc. Ultra™ Si544 245.76 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC001704CCGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC001926BCG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V ~ 3.3V

544BACC001927BCG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V ~ 3.3V

544BACC000199BCG Skyworks Solutions Inc. Ultra™ Si544 40 MHz LVDS 1.8V ~ 3.3V

544BACC001530BCG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V ~ 3.3V

544BACC001928BCG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V ~ 3.3V

544BACC000627ACG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V ~ 3.3V

544BAAC000115CCG Skyworks Solutions Inc. Ultra™ Si544 125 MHz LVDS 1.8V ~ 3.3V

544BAAC000159CCG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544AACC000110ACG Skyworks Solutions Inc. Ultra™ Si544 74.25 MHz LVPECL 2.5V, 3.3V

544BAAC002361BCG Skyworks Solutions Inc. Ultra™ Si544 245.76 MHz LVDS 1.8V, 2.5V, 3.3V

544EAAC002354ACG Skyworks Solutions Inc. Ultra™ Si544 103 MHz HCSL 1.8V, 2.5V, 3.3V

544BBAC000115CCG Skyworks Solutions Inc. Ultra™ Si544 125 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000115BCG Skyworks Solutions Inc. Ultra™ Si544 125 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC001704CCG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAC000112BCG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BACC000188BCG Skyworks Solutions Inc. Ultra™ Si544 12 MHz LVDS 1.8V, 2.5V, 3.3V

544ABAC001975BBGR Skyworks Solutions Inc. Ultra™ Si544 40.8 MHz LVPECL 2.5V, 3.3V

544BBAC000118BBGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V, 2.5V, 3.3V

544BBAC001541BBGR Skyworks Solutions Inc. Ultra™ Si544 96 MHz LVDS 1.8V, 2.5V, 3.3V

544BBCC000121BBGR Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V, 2.5V, 3.3V

544ACAC000112BBGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V, 3.3V

544BCAC002065BBGR Skyworks Solutions Inc. Ultra™ Si544 272.8 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAC002111BBGR Skyworks Solutions Inc. Ultra™ Si544 163.2 MHz LVDS 1.8V, 2.5V, 3.3V

544BBAC000118BCGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V ~ 3.3V

544BBCC000121ACGR Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V ~ 3.3V

544BBAC000199CCGR Skyworks Solutions Inc. Ultra™ Si544 40 MHz LVDS 1.8V, 2.5V, 3.3V

544ABAC001975BBG Skyworks Solutions Inc. Ultra™ Si544 40.8 MHz LVPECL 2.5V, 3.3V

544BBAC000118BBG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V, 2.5V, 3.3V

544BBAC001541BBG Skyworks Solutions Inc. Ultra™ Si544 96 MHz LVDS 1.8V, 2.5V, 3.3V

544BBCC000121BBG Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V, 2.5V, 3.3V

544BBAC000118BCG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V ~ 3.3V

544BBCC000121ACG Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V ~ 3.3V

544BBAC000199CCG Skyworks Solutions Inc. Ultra™ Si544 40 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAC002111BCGR Skyworks Solutions Inc. Ultra™ Si544 163.2 MHz LVDS 1.8V ~ 3.3V

544ACCC000597ACGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVPECL 2.5V, 3.3V

544ACCC000115ACGR Skyworks Solutions Inc. Ultra™ Si544 125 MHz LVPECL 2.5V, 3.3V

544ACAA000112BBGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V, 3.3V

544ACAA000131BBGR Skyworks Solutions Inc. Ultra™ Si544 120 MHz LVPECL 2.5V, 3.3V

544ACAA001427BBGR Skyworks Solutions Inc. Ultra™ Si544 157 MHz LVPECL 2.5V, 3.3V

544ACAA002065BBGR Skyworks Solutions Inc. Ultra™ Si544 272.8 MHz LVPECL 2.5V, 3.3V

544BCAA000112BBGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAA000126BBGR Skyworks Solutions Inc. Ultra™ Si544 200 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAA000136BBGR Skyworks Solutions Inc. Ultra™ Si544 160 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAA001541BBGR Skyworks Solutions Inc. Ultra™ Si544 96 MHz LVDS 1.8V, 2.5V, 3.3V

544BCBA000544BBGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAA000121CCGR Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V ~ 3.3V

544BCAA000112CCGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544ACAA000112CCGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V, 3.3V

544ACAA000112BBG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V, 3.3V

544ACAA000131BBG Skyworks Solutions Inc. Ultra™ Si544 120 MHz LVPECL 2.5V, 3.3V

544ACAA001427BBG Skyworks Solutions Inc. Ultra™ Si544 157 MHz LVPECL 2.5V, 3.3V

544ACAA002065BBG Skyworks Solutions Inc. Ultra™ Si544 272.8 MHz LVPECL 2.5V, 3.3V

544BCAA000112BBG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAA000126BBG Skyworks Solutions Inc. Ultra™ Si544 200 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAA000136BBG Skyworks Solutions Inc. Ultra™ Si544 160 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAA001541BBG Skyworks Solutions Inc. Ultra™ Si544 96 MHz LVDS 1.8V, 2.5V, 3.3V

544BCBA000544BBG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAA000121CCG Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V ~ 3.3V

544ACAA000112CCG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V, 3.3V

544BCAA000112CCG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAC002111BCG Skyworks Solutions Inc. Ultra™ Si544 163.2 MHz LVDS 1.8V ~ 3.3V

544ACCC000597ACG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVPECL 2.5V, 3.3V

544ACCC000115ACG Skyworks Solutions Inc. Ultra™ Si544 125 MHz LVPECL 2.5V, 3.3V

544ACAC000112BBG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V, 3.3V

544BCAC002065BBG Skyworks Solutions Inc. Ultra™ Si544 272.8 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAC002111BBG Skyworks Solutions Inc. Ultra™ Si544 163.2 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAA000137BBG Skyworks Solutions Inc. Ultra™ Si544 1.024 GHz LVDS 1.8V, 2.5V, 3.3V

544BAAA001741BBG Skyworks Solutions Inc. Ultra™ Si544 70.656 MHz LVDS 1.8V, 2.5V, 3.3V

544BACA000420BBG Skyworks Solutions Inc. Ultra™ Si544 644.53125 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAA002302CCGR Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAA002302CCG Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V ~ 3.3V

544ABAA000112BBGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V, 3.3V

544ABAA001982BBGR Skyworks Solutions Inc. Ultra™ Si544 133.3125 MHz LVPECL 2.5V, 3.3V

544BCAB000126CCG Skyworks Solutions Inc. Ultra™ Si544 20 MHz LVDS 1.8V, 2.5V, 3.3V

544BBAB000115BCG Skyworks Solutions Inc. Ultra™ Si544 125 MHz LVDS 1.8V, 2.5V, 3.3V

544ABAA000112BBG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVPECL 2.5V, 3.3V

544ABAA001982BBG Skyworks Solutions Inc. Ultra™ Si544 133.3125 MHz LVPECL 2.5V, 3.3V

544BCAB000313BBG Skyworks Solutions Inc. Ultra™ Si544 300 MHz LVDS 2.5V

544BCAB001699ACGR Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V ~ 3.3V

544BCAB001699ACG Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V ~ 3.3V

544BBAB000115BCGR Skyworks Solutions Inc. Ultra™ Si544 125 MHz LVDS 1.8V, 2.5V, 3.3V

544BCAB000126CCGR Skyworks Solutions Inc. Ultra™ Si544 20 MHz LVDS 1.8V, 2.5V, 3.3V

544AAAA000118ABGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVPECL 2.5V, 3.3V

544AAAA000118BBGR Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVPECL 2.5V, 3.3V

544AAHA001950ABGR Skyworks Solutions Inc. Ultra™ Si544 - LVPECL 2.5V, 3.3V

544BAAA000137BBGR Skyworks Solutions Inc. Ultra™ Si544 1.024 GHz LVDS 1.8V, 2.5V, 3.3V

544BAAA001741BBGR Skyworks Solutions Inc. Ultra™ Si544 70.656 MHz LVDS 1.8V, 2.5V, 3.3V

544BACA000420BBGR Skyworks Solutions Inc. Ultra™ Si544 644.53125 MHz LVDS 1.8V, 2.5V, 3.3V

544AAAA000118ABG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVPECL 2.5V, 3.3V

544AAAA000118BBG Skyworks Solutions Inc. Ultra™ Si544 156.25 MHz LVPECL 2.5V, 3.3V

544AAHA001950ABG Skyworks Solutions Inc. Ultra™ Si544 - LVPECL 2.5V, 3.3V

544BBAC000115BCGR Skyworks Solutions Inc. Ultra™ Si544 125 MHz LVDS 1.8V, 2.5V, 3.3V

544BBCB000112BBGR Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BBCB000126BBGR Skyworks Solutions Inc. Ultra™ Si544 200 MHz LVDS 1.8V, 2.5V, 3.3V

544BBCB000177BBGR Skyworks Solutions Inc. Ultra™ Si544 297 MHz LVDS 1.8V, 2.5V, 3.3V

544BBCB000112BBG Skyworks Solutions Inc. Ultra™ Si544 10 MHz LVDS 1.8V, 2.5V, 3.3V

544BBCB000126BBG Skyworks Solutions Inc. Ultra™ Si544 200 MHz LVDS 1.8V, 2.5V, 3.3V

544BBCB000177BCGR Skyworks Solutions Inc. Ultra™ Si544 297 MHz LVDS 1.8V ~ 3.3V

544BCAB000313BBGR Skyworks Solutions Inc. Ultra™ Si544 300 MHz LVDS 2.5V

544BBCB000177BCG Skyworks Solutions Inc. Ultra™ Si544 297 MHz LVDS 1.8V ~ 3.3V

544BAAB000482BBG Skyworks Solutions Inc. Ultra™ Si544 148.35 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAB001011BBG Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACB001808ABG Skyworks Solutions Inc. Ultra™ Si544 270 MHz LVDS 1.8V, 2.5V, 3.3V

544BACB001939ABG Skyworks Solutions Inc. Ultra™ Si544 150.060024 MHz LVDS 1.8V, 2.5V, 3.3V

544BACB001952ABG Skyworks Solutions Inc. Ultra™ Si544 202.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACB001960ABG Skyworks Solutions Inc. Ultra™ Si544 227.272727 MHz LVDS 1.8V, 2.5V, 3.3V

544BACB001961ABG Skyworks Solutions Inc. Ultra™ Si544 121.306 MHz LVDS 1.8V, 2.5V, 3.3V

544BACB001962ABG Skyworks Solutions Inc. Ultra™ Si544 121.3056 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAB000121BCGR Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V ~ 3.3V

544BAAB000121BCG Skyworks Solutions Inc. Ultra™ Si544 100 MHz LVDS 1.8V ~ 3.3V

544BAAB000482BBGR Skyworks Solutions Inc. Ultra™ Si544 148.35 MHz LVDS 1.8V, 2.5V, 3.3V

544BAAB001011BBGR Skyworks Solutions Inc. Ultra™ Si544 148.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACB001808ABGR Skyworks Solutions Inc. Ultra™ Si544 270 MHz LVDS 1.8V, 2.5V, 3.3V

544BACB001939ABGR Skyworks Solutions Inc. Ultra™ Si544 150.060024 MHz LVDS 1.8V, 2.5V, 3.3V

544BACB001952ABGR Skyworks Solutions Inc. Ultra™ Si544 202.5 MHz LVDS 1.8V, 2.5V, 3.3V

544BACB001960ABGR Skyworks Solutions Inc. Ultra™ Si544 227.272727 MHz LVDS 1.8V, 2.5V, 3.3V

544BACB001961ABGR Skyworks Solutions Inc. Ultra™ Si544 121.306 MHz LVDS 1.8V, 2.5V, 3.3V

544BACB001962ABGR Skyworks Solutions Inc. Ultra™ Si544 121.3056 MHz LVDS 1.8V, 2.5V, 3.3V

544BBAC000115BCG Skyworks Solutions Inc. Ultra™ Si544 125 MHz LVDS 1.8V, 2.5V, 3.3V

1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 　　何疑問.讓您的消費得到保障。
3.質量保證，誠信為上　　 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 　為您的產品量身訂制,免費取樣,
　　　　　　為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請提前和業務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.

　深圳市泰河電子有限公司
　代理:EPSON,KDS,CITIZEN,SEIKO
　電話:0755-27872782
　手機:13824306246
　郵箱:taiheth@163.com
　Q Q:794113422
　地址:深圳市寶安區40區33號工業城6樓
　網址：http://www.robbia.com.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!

微信:taihekj QQ:794113422

相關產品

亚洲特级片-亚洲特级黄色片-亚洲桃色综合影院-亚洲素人在线-精品视频免费在线-精品视频免费看

泰河盛電子
Dong TaiHe Electronic

歐美晶振

晶振最新行情

Skyworks差分晶體,544BAAC001713ACG,6G無線網絡晶振

相關產品

泰河盛電子

項目	符號	規格說明	條件
額定頻率	f_nom	325MHz	請聯系我們以便獲取其它可用頻率的相關信息
電源電壓	Vcc	3.3V
儲存溫度	T_stg	-55℃~+125℃	裸存
工作溫度	T_use	-40℃~ +85℃
頻率穩定性	f_tol	±20 ppm	+25℃,超出標準的規格說明請聯系我們
電源電流	IDD	111mA Max	LVDS
對稱性（占空比）	SYM	45%~55%	在輸出交叉點
輸出電壓	VOC	1.275V Max	LVDS
輸出電壓	VO	0.9Vpp Max	LVDS
輸入電壓	VIH	0.7×VDD Min
輸入電壓	VIL	0.3×VDD Max
上升下降時間	tr/tf	350ps Max	LVDS
起始時間	t str	10ms Max
相位抖動	tpj	0.5ps Max	Differential Formats

亚洲特级片-亚洲特级黄色片-亚洲桃色综合影院-亚洲素人在线-精品视频免费在线-精品视频免费看

泰河盛電子Dong TaiHe Electronic

歐美晶振

晶振最新行情

Skyworks差分晶體,544BAAC001713ACG,6G無線網絡晶振

相關產品

泰河盛電子

泰河盛電子
Dong TaiHe Electronic
